SAE100R7 Braided Lubrication Hose
Nylon-cored, single fibre-braided, polyurethane-covered hose for lubrication lines that run at higher pressure than plain nylon tube is rated for, in 17 sizes from DN2 to DN25.
Enquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription

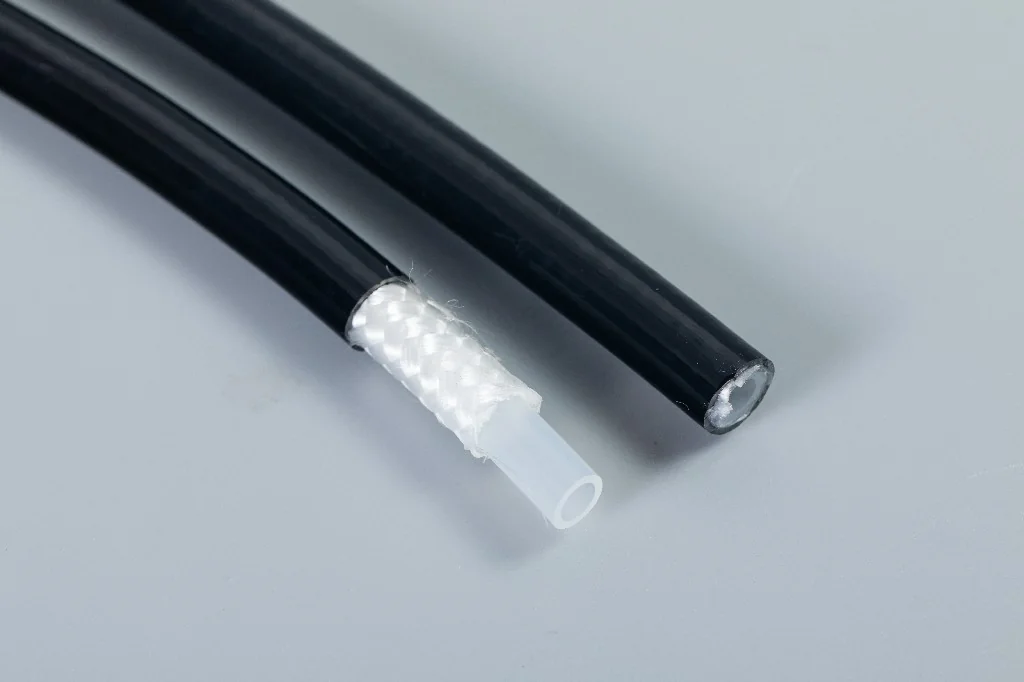

SAE100R7 hose is built for lubrication lines that run at higher pressure than plain nylon tube is rated for: a nylon inner core, a single fibre braid reinforcement, and a polyurethane cover. It runs from −40°C to +100°C, well beyond the range of the plain nylon tube.
It is used across engineering machinery, machine tools, automobiles, mining, air-conditioning and refrigeration, food and chemical industry equipment — anywhere a lubrication line needs the extra pressure rating and temperature range the braid gives over an unreinforced tube.
The manufacturer's working-pressure-to-burst-pressure safety ratio is stated as 1:4. The table below is a representative selection across the size range; the manufacturer publishes 17 sizes in total from DN2 to DN25, so ask us for the full table if the size you need isn't shown here.
Specifications
| Size | I.D. × O.D. | Working Pressure | Min. Burst Pressure | Min. Bend Radius |
|---|---|---|---|---|
| 1/12″ (DN 2) | 2 × 5 mm | 400 bar | 1200 bar | 30 mm |
| 5/32″ (DN 4) | 4 × 9 mm | 210 bar | 840 bar | 35 mm |
| 3/16″ (DN 4.8) | 4.8 × 10.3 mm | 210 bar | 840 bar | 35 mm |
| 1/4″ (DN 6) | 6.3 × 11.7 mm | 200 bar | 800 bar | 50 mm |
| 5/16″ (DN 8) | 7.9 × 14.3 mm | 210 bar | 780 bar | 50 mm |
| 3/8″ (DN 10) | 9.5 × 15.9 mm | 200 bar | 700 bar | 80 mm |
| 5/8″ (DN 16) | 15.9 × 23.3 mm | 130 bar | 520 bar | 160 mm |
| 1″ (DN 25) | 25.4 × 34 mm | 70 bar | 280 bar | 250 mm |
Common to every model
| Construction | Nylon core, single fibre braid, polyurethane cover |
|---|---|
| Temperature Range | −40°C to +100°C |
| Safety Ratio | Working pressure to burst pressure, 1:4 |
See also
Related products
-

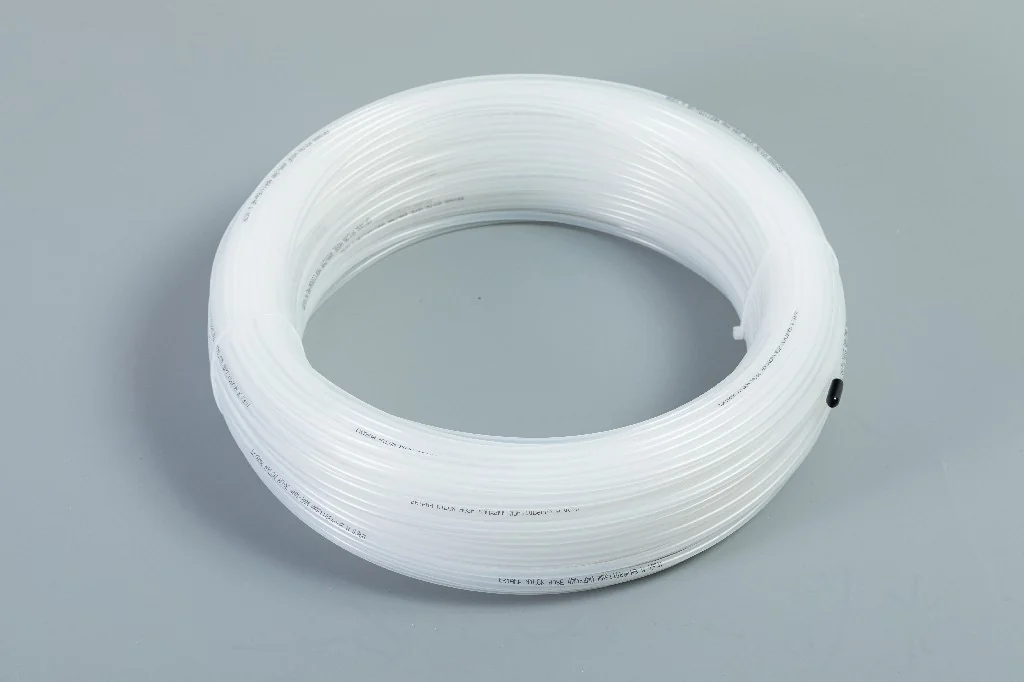

Nylon Lubrication Tube
PA11 and PA12 nylon tube for running oil or grease from a pump or distributor to the lubrication point, self-lubricating and resistant to oil, water and weak acids and alkalis.
Accessories -

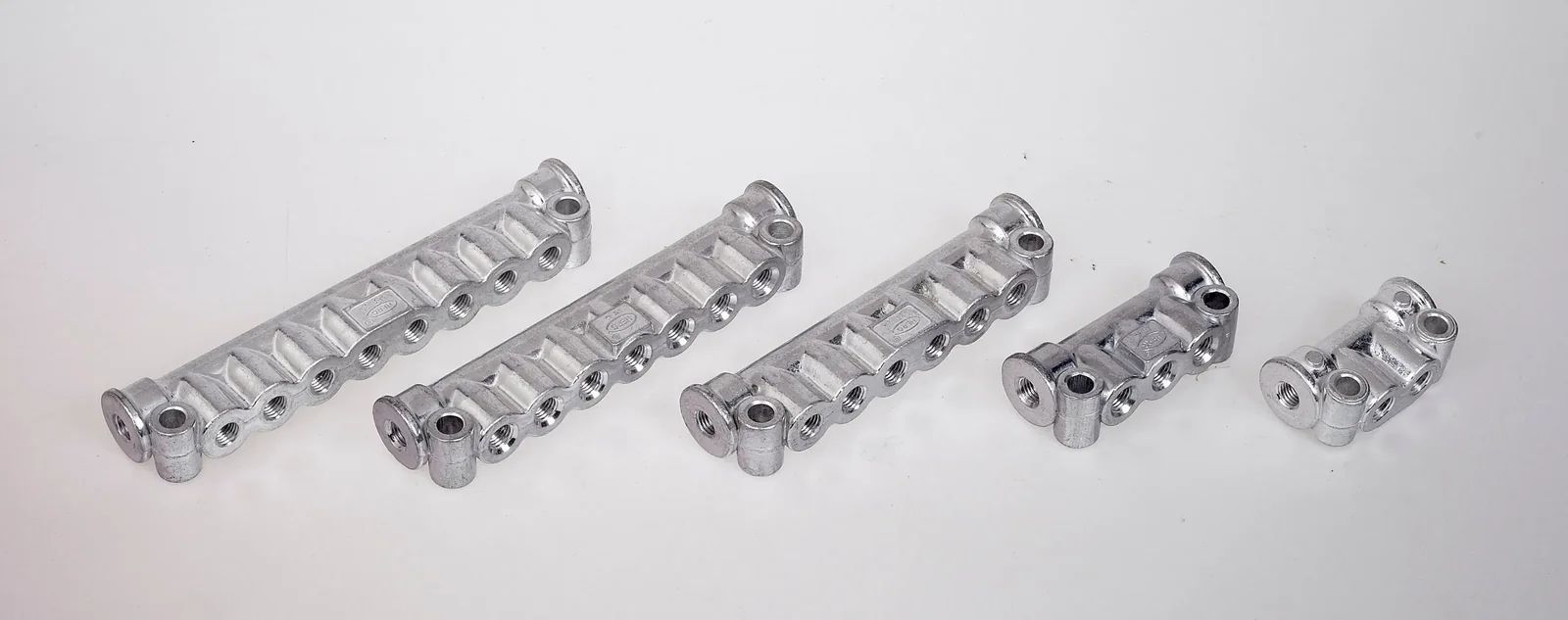

TH Type Joint Fitting
