Product catalogue
Every Herg pump, distributor and accessory we supply in India. Prices and availability on enquiry.
Lubrication Pumps
10-
TZ Type Oil Lubrication Pump
Timed gear oil pump in 24V DC, 110V, 220V or 415V three-phase, 2 L or 4 L reservoir.
TZLubrication Pumps -
HL Type Oil Lubrication Pump
Gear-type oil pump on 110V or 220V AC, with 2 L or 4 L reservoir.
HLLubrication Pumps -
GM Type Grease Lubrication Pump
Three-phase 380V grease pump at 35 kgf/cm², with 2 L or 4 L reservoir.
GMLubrication Pumps -
ZJ Type High Pressure Grease Pump
High-pressure piston grease pump at 30 MPa, one or two outlets, 12V or 24V DC.
ZJLubrication Pumps -
ZD Type Medium Pressure Grease Pump
Medium-pressure piston grease pump, 12V or 24V DC, 2 to 8 L reservoirs, IP65.
ZDLubrication Pumps -
TM Type Automatic Intermittent Lubrication Pump
Oil pump with built-in timer motor, 1 to 6 mL per cycle, 2.0 L or 1.2 L reservoir.
TMLubrication Pumps -
AP Type Automotive Chassis Lubrication Pump
12V or 24V DC grease pump for vehicle chassis lubrication, 3 L reservoir, IP55.
APLubrication Pumps -

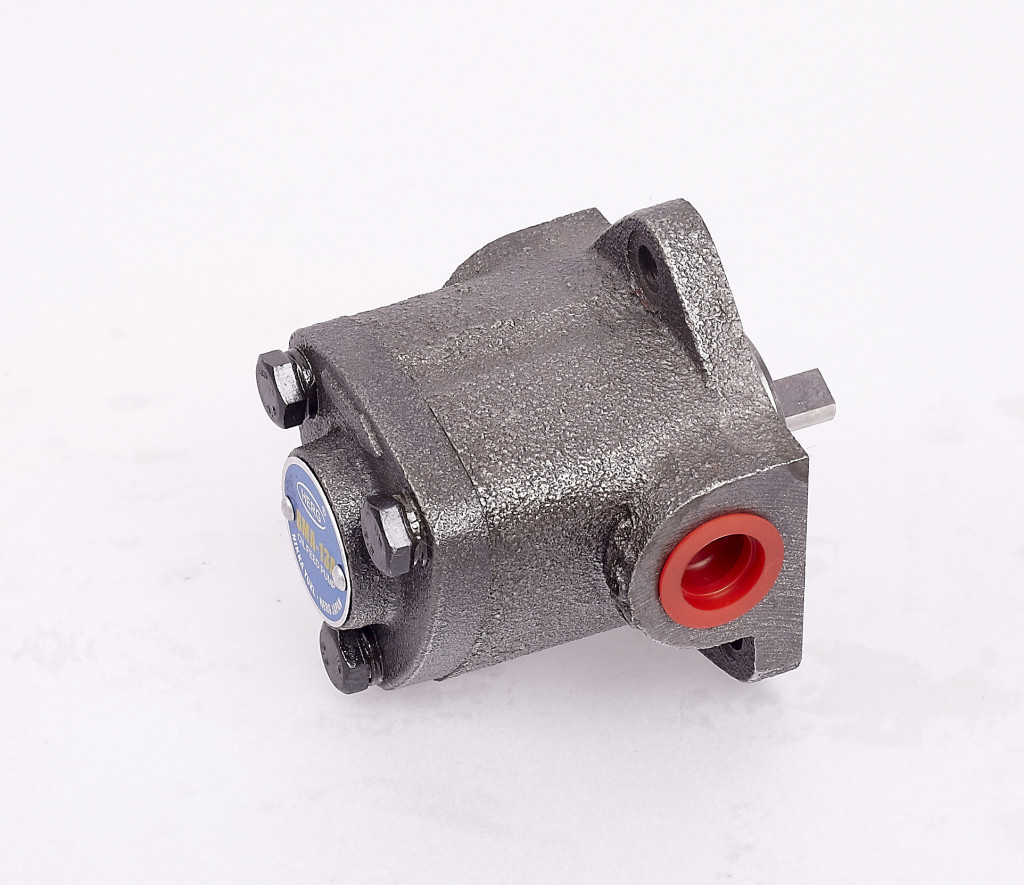

BM Type Cycloidal Pump
Cycloidal oil pump for low-voltage lubrication systems, with good self-priming.
BMLubrication Pumps -
NKHY Manual Oil Pump
Hand-lever oil pump for single-line resist-type lubrication systems.
NKHYLubrication Pumps -
NKGH Manual Grease Pump
Hand-operated grease pump for resist-type or progressive systems, rated to 10 MPa.
NKGHLubrication Pumps
Distributors
6-
35 Type Volumetric Distributor
Larger pressurized volumetric distributor for oil or grease, 2 to 6 outlets.
Distributors -
34 Type Volumetric Distributor
Herg's smallest pressurized volumetric distributor: oil only, 2 to 5 outlets.
Distributors -
TCJ and TCZ Resist Type Distributor
Resist-type proportioning distributor for oil, in five flow sizes.
Distributors -
RH3 Type Volumetric Distributor
Volumetric distributor for oil or grease, 2 to 5 outlets with more addable.
Distributors -
SD2 Type Progressive Grease Distributor
Compact modular progressive grease distributor rated to 25 MPa.
Distributors -
DK Type Single-Line Metering Distributor
Single-line metering distributor, DK-05 to DK-50, 0.05 to 0.5 mL per outlet.
DKDistributors
Accessories
6-
Pressure Switches
Switch that trips at a preset pressure and signals an alarm to the control panel.
Accessories -
Oil Level Indicator
Reservoir-mounted indicator for reading the oil level at a glance.
Accessories -
Filter
Inline filter that keeps contaminants out of a distributor's fine metering orifices.
Accessories -
Pressure Gauge
Gauge for reading line pressure at the pump outlet or main delivery line.
Accessories -
Nylon Lubrication Tube
PA11 and PA12 nylon tube for oil and grease lines, in 100 m rolls.
Accessories -
TH Type Joint Fitting
Branch manifold with 2 to 10 outlets in M8 × 1 or M10 × 1 threads.
THAccessories
Compare specs
| Product | Lubricant | Power | Pressure | Size | Manual |
|---|---|---|---|---|---|
| Lubrication Pumps | |||||
| TZ Type Oil Lubrication Pump | Oil | 24 V DC, 110/220 V AC, 415 V 3-phase | Rated 1.5 MPa, max 2.5 MPa | 2 L or 4 L reservoir | |
| HL Type Oil Lubrication Pump | Oil | 110 V or 220 V AC | Rated 1.5 MPa, max 2.5 MPa | 2 L or 4 L reservoir | |
| GM Type Grease Lubrication Pump | Grease | 380 V 3-phase | Nominal 3.5 MPa, max 5.0 MPa | 2 L or 4 L reservoir | |
| ZJ Type High Pressure Grease Pump | Grease or oil | 12 V or 24 V DC | Rated 30 MPa | 2 to 8 L reservoir, 1 or 2 outlets | |
| ZD Type Medium Pressure Grease Pump | Grease or oil | 12 V or 24 V DC | Rated 18 MPa | 2 to 8 L reservoir | |
| TM Type Automatic Intermittent Lubrication Pump | Oil | 110 V or 220 V AC | Max 0.3 MPa | 2.0 L reservoir (TMS 1.2 L) | |
| AP Type Automotive Chassis Lubrication Pump | Grease | 12 V or 24 V DC | Working 3.5 to 3.8 MPa | 3 L reservoir | |
| BM Type Cycloidal Pump | Oil | Low voltage | Max 0.5 MPa | Not stated | |
| NKHY Manual Oil Pump | Oil | Hand-operated | Not stated | 2 outlets (1 left, 1 right) | |
| NKGH Manual Grease Pump | Grease | Hand-operated | Working 10 MPa | Not stated | |
| Distributors | |||||
| 35 Type Volumetric Distributor | Oil or grease | Pump-fed | Actuates at 12 to 15 kgf/cm² (oil), 30 to 40 (grease) | 2 to 6 outlets | |
| 34 Type Volumetric Distributor | Oil | Pump-fed | Actuates at 8 to 12 kgf/cm² | 2 to 5 outlets | |
| TCJ and TCZ Resist Type Distributor | Oil | Pump-fed | Working 1.5 to 20 kgf/cm² | 5 flow sizes | |
| RH3 Type Volumetric Distributor | Oil or grease | Pump-fed | Actuates at 12 to 15 kgf/cm² (oil), 20 to 50 (grease) | 2 to 5 outlets, more addable | |
| SD2 Type Progressive Grease Distributor | Grease or oil | Pump-fed | Max 25 MPa | 1 to 20 lube points | |
| DK Type Single-Line Metering Distributor | Oil or grease | Pump-fed | Actuates at 12 to 15 kgf/cm² (oil, DK-05 to DK-30) | 0.05 to 0.5 mL per outlet | |
| Accessories | |||||
| Pressure Switches | Not stated | Not stated | Trips at a preset pressure | Not stated | Not stated |
| Oil Level Indicator | Oil | Not stated | Not stated | Not stated | Not stated |
| Filter | Not stated | Not stated | Not stated | Not stated | Not stated |
| Pressure Gauge | Not stated | Not stated | Reads line pressure | Not stated | Not stated |
| Nylon Lubrication Tube | Oil or grease | Not stated | Burst 6.0 MPa | 100 m roll | Not stated |
| TH Type Joint Fitting | Not stated | Not stated | Not stated | 2 to 10 outlets | Not stated |
Figures are as stated on each product page, in the units given there. Open a product for the full specification.
