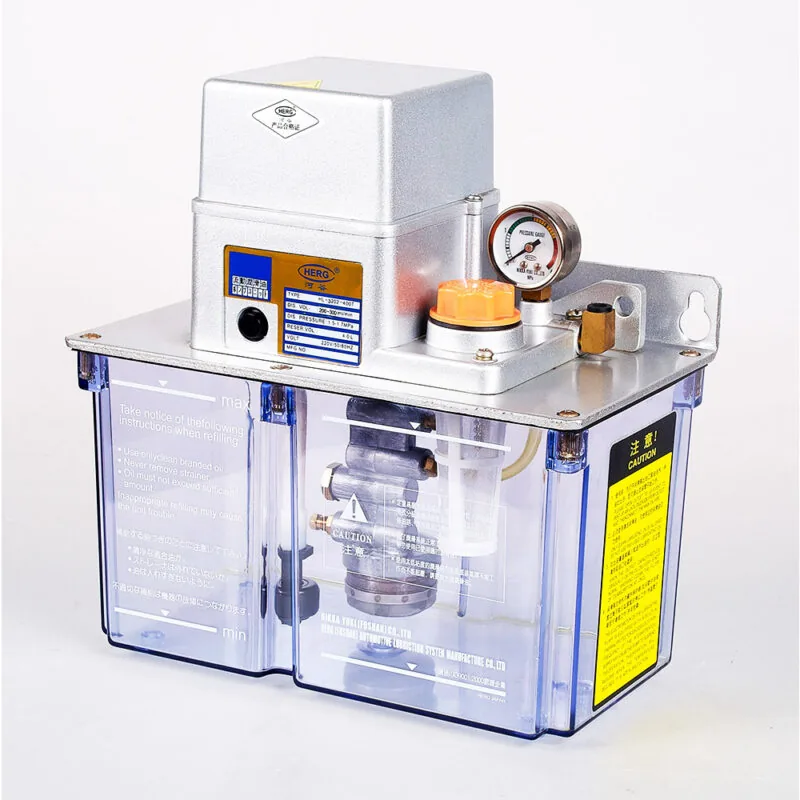

HL Type Oil Lubrication Pump
The HL type motor-driven lubrication pump is a gear pump in special alloy steel, easy to install and wire, with good self-priming and a high volumetric flow rate.
Enquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The HL type comes fitted with a level switch, and a pressure switch can be added depending on the application. Together, the two let the pump detect pressure and oil level across the system, combining intermittent operation with an alarm function automatically.
A pump with a pressure take-off mechanism pairs with a positive-displacement volumetric distributor, forming a volumetric lubrication system that delivers a dosed amount of oil to each lube point. A pump without a pressure take-off mechanism pairs with a resist-type distributor instead, delivering oil in proportion to each lube point.
Specifications
| Model | Motor speed | Discharge capacity |
|---|---|---|
| HL-2201 | 3360 rpm at 60 Hz | 130 mL/min |
| HL-2202 | 2800 rpm at 50 Hz | 110 mL/min |
| HL-3201 | 3360 rpm at 60 Hz | 260 mL/min |
| HL-3202 | 2800 rpm at 50 Hz | 220 mL/min |
Common to every model
| Rated Pressure | 15 kgf/cm² (1.5 MPa) |
|---|---|
| Maximum Pressure | 25 kgf/cm² (2.5 MPa) |
| Volumetric Flow Rate | ≥ 75% |
| Reservoir | 2 L, 4 L; metal made to order |
| Voltage | 110V AC, 220V AC |
| Motor Power | 20 W |
| Oil Viscosity | 30 to 1000 cSt |
Not sure which grade suits your machine? See choosing the right lubricant.
See also
Related products
-
TZ Type Oil Lubrication Pump
Timed gear oil pump in 24V DC, 110V, 220V or 415V three-phase, 2 L or 4 L reservoir.
TZLubrication Pumps -

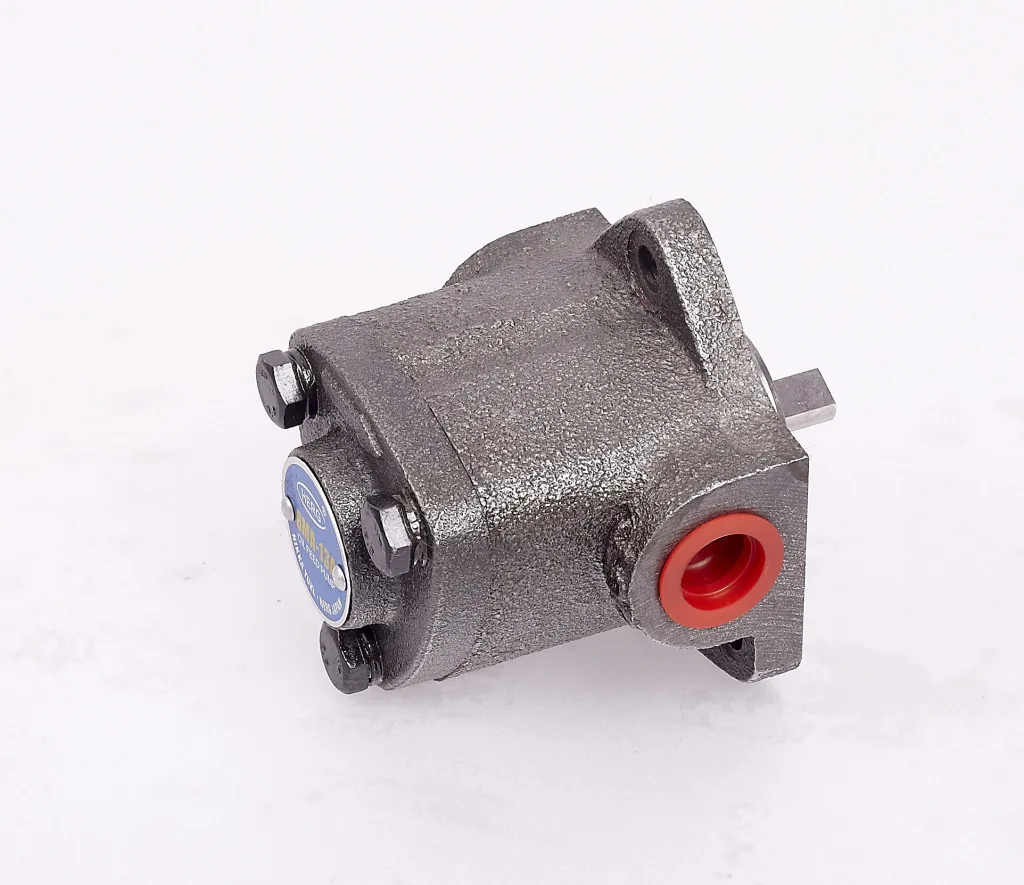

BM Type Cycloidal Pump
Cycloidal oil pump for low-voltage lubrication systems, with good self-priming.
BMLubrication Pumps -

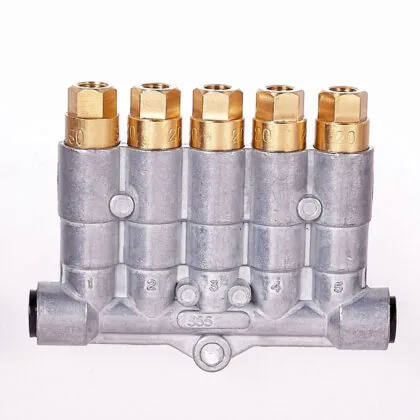

35 Type Volumetric Distributor
