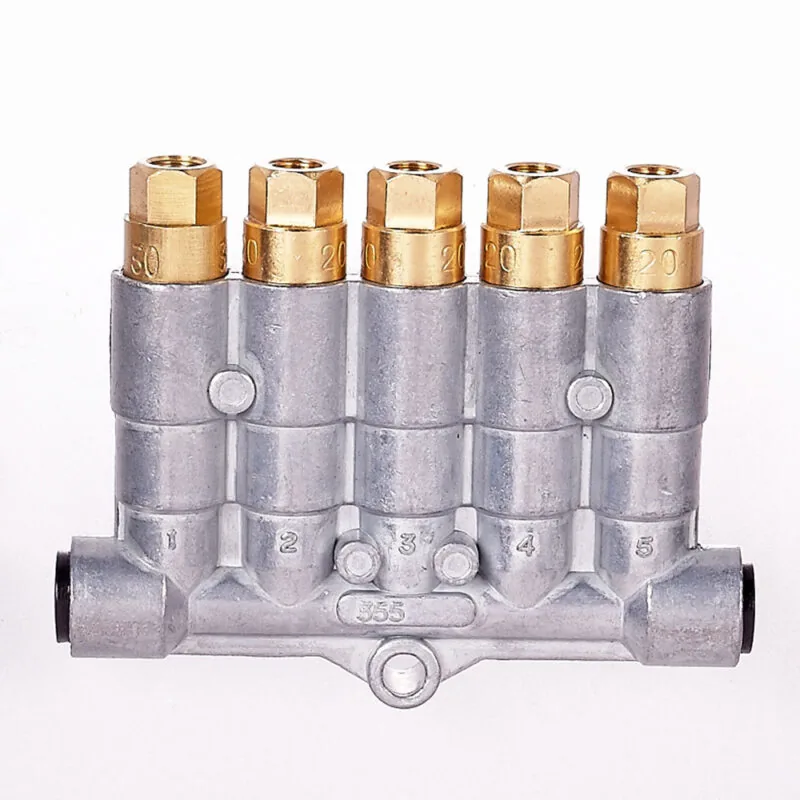

35 Type Volumetric Distributor
The 35 type pressurized volumetric distributor injects a metered dose of oil as line pressure rises, then refills as pressure drops.
Used in escalator lubrication systems.
Manual for 35 Type Volumetric DistributorPDF · 3 pages · 181 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The 35 type pressurized volumetric distributor injects a metered dose of oil as line pressure rises, then refills as pressure drops. It suits volume-type cycle lubrication systems, feeding a measured dose of oil to each lubrication point on every cycle. It is widely used in printing machines, packing machines, machine tools and other industrial equipment.

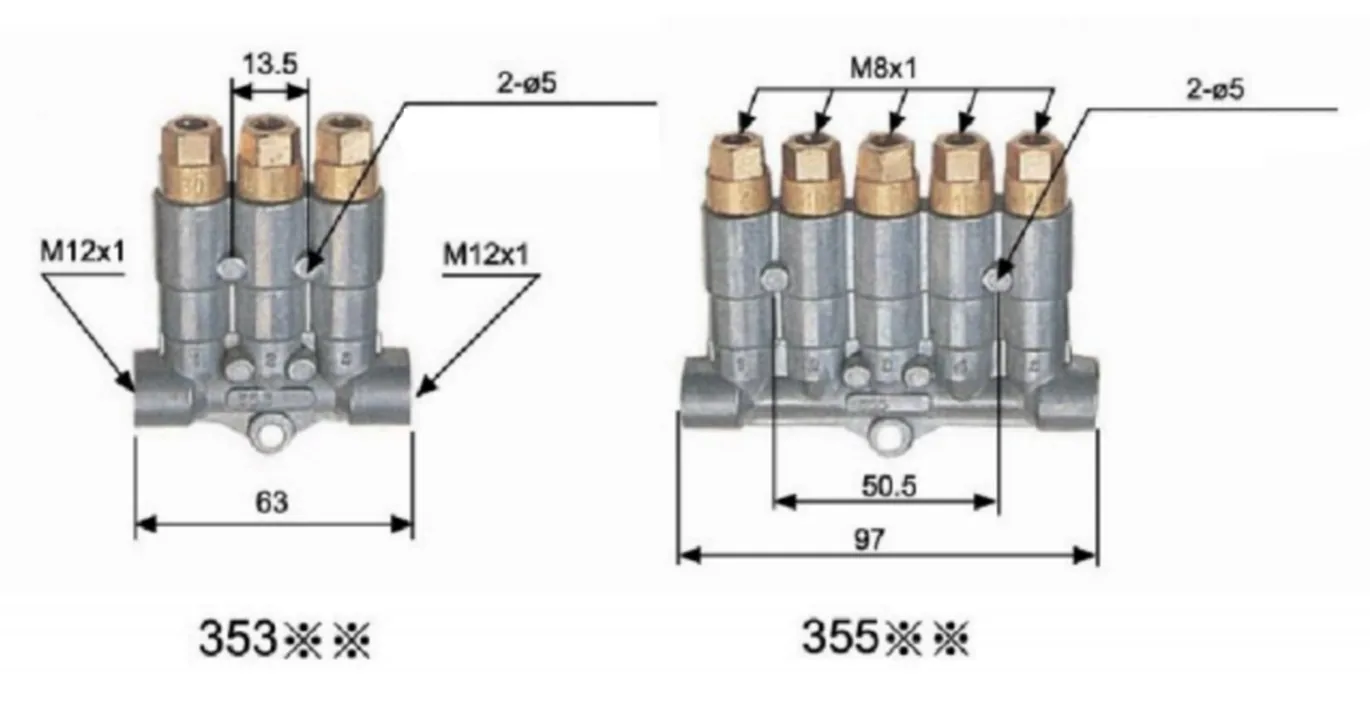

Dimensions

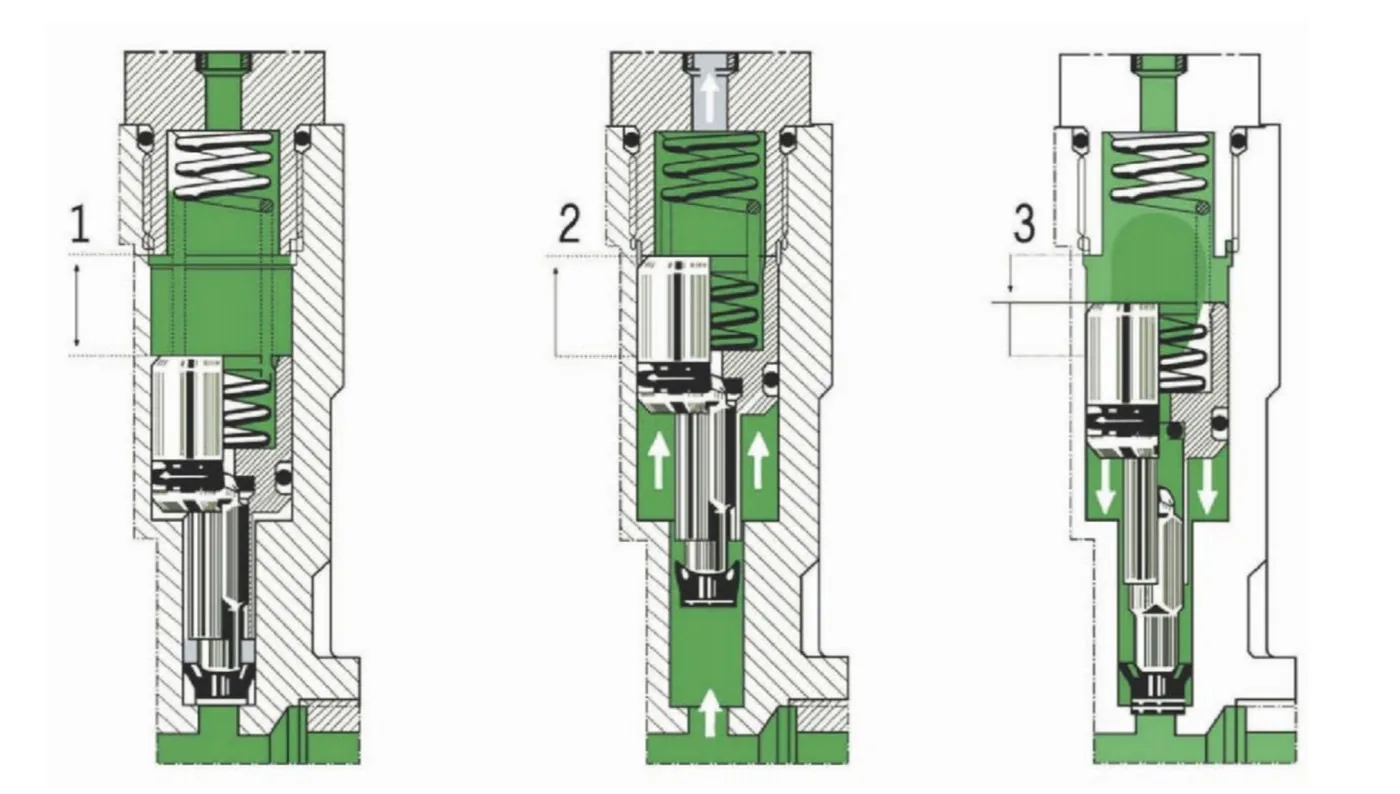

Operating Principle
1. Pressure has been taken off and lubricant has accumulated; the distributor is ready to feed a metered dose to the lubrication points.
2. As the lubrication pump raises pressure again, the metered dose is fed to the lubrication points.
3. Once pressure in the main tube is taken off, the piston resets while fresh lubricant enters the piston chamber.
Specifications
| Outlets | 2, 3, 5 or 6 |
|---|---|
| Discharge Capacity | 0.1 to 0.6 mL per outlet |
| Action Guarantee Pressure | Oil: 12 to 15 kgf/cm² · Grease: 30 to 40 kgf/cm² |
| Recommended Viscosity | 20 to 500 cSt; grease 00# or 000# |
Not sure which grade suits your machine? See choosing the right lubricant.
