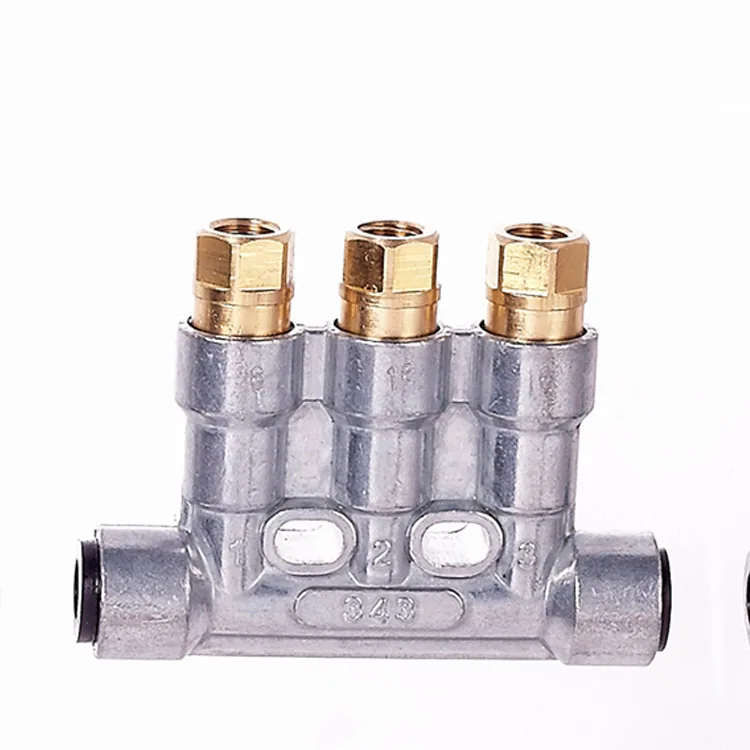

34 Type Volumetric Distributor
The 34 type pressurized volumetric distributor injects a metered dose of oil as line pressure rises, then refills as pressure drops.
Used in escalator lubrication systems.
Manual for 34 Type Volumetric DistributorPDF · 3 pages · 136 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The 34 type pressurized volumetric distributor injects a metered dose of oil as line pressure rises, then refills as pressure drops. It suits volume-type cycle lubrication systems, feeding a measured dose of oil to each lubrication point on every cycle.
It is widely used in printing machines, packing machines, machine tools and other industrial equipment.

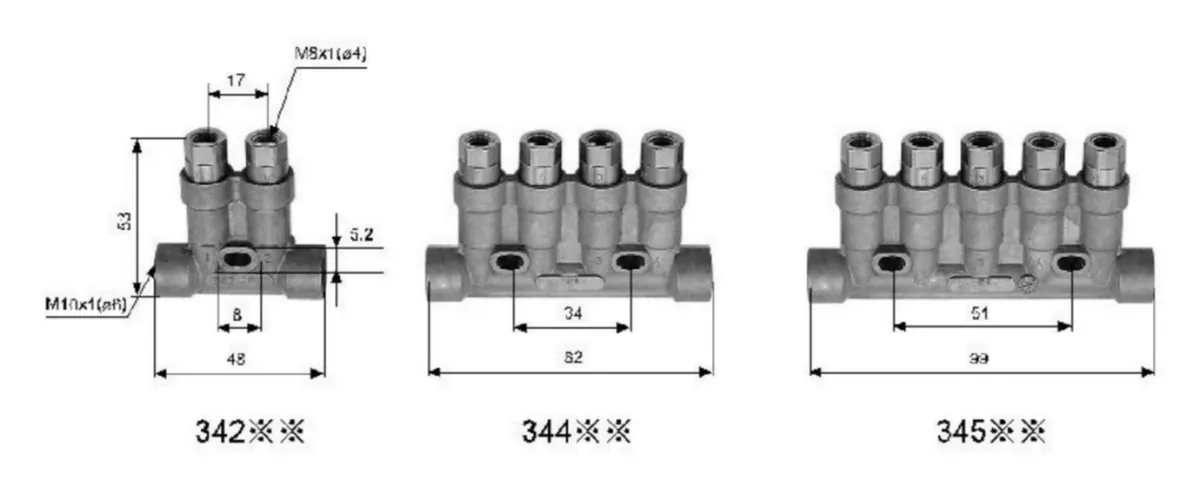

Dimension
Specifications
| Outlets | 2, 3, 4 or 5 |
|---|---|
| Discharge Capacity | 0.03, 0.06, 0.1 or 0.16 mL per outlet |
| Action Guarantee Pressure | Oil: 8 to 12 kgf/cm² |
| Recommended Viscosity | 20 to 500 cSt |
Not sure which grade suits your machine? See choosing the right lubricant.
