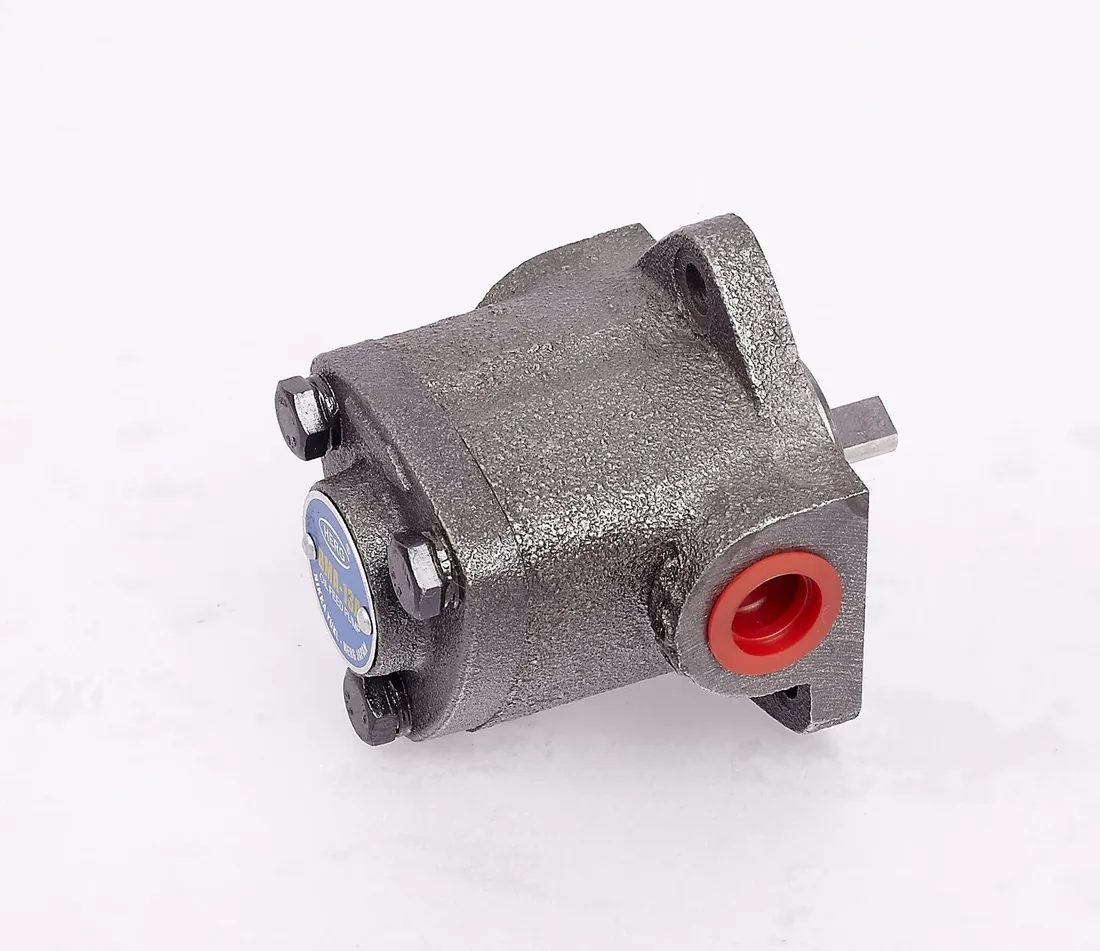

BM Type Cycloidal Pump
The BM series cycloidal pump has a simple construction and delivers oil at a steady rate.
Manual for BM Type Cycloidal PumpPDF · 2 pages · 135 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The BM series cycloidal pump has a simple construction and delivers oil at a steady rate, with good self-priming and stable performance at high speed. It suits low-voltage lubrication systems running continuously or intermittently.

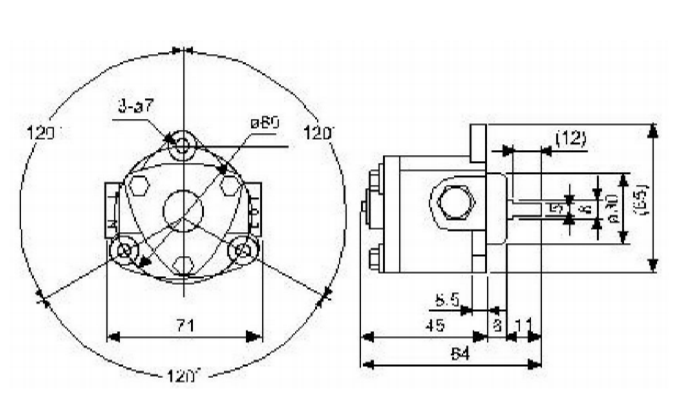

Dimensions
It is well suited to machine tools, textile machinery, printing machinery and other light machinery.
Specifications
| Model | Theoretical discharge (cc/rev) | 1500 rpm (L/min) | 1800 rpm (L/min) | Max. rotary speed (rpm) | Inlet / outlet thread | Weight (kg) |
|---|---|---|---|---|---|---|
| BMA-10A | 0.8 | 1.2 | 1.4 | 3000 | PT1/8 | 0.55 |
| BMA-11A | 1.5 | 2.2 | 2.7 | 2000 | PT1/8, PT1/4 | 0.55 |
| BMA-12A | 2.5 | 3.7 | 4.5 | 1800 | PT1/4 | 0.55 |
| BMA-13A | 4.5 | 6.7 | 7.5 | 1800 | PT3/8 | 0.55 |
| BMB-1FS | 1.16 | 1.74 | 2.08 | 2000 | PT1/4 | 1.0 |
| BMB-2FS | 1.8 | 2.7 | 3.24 | 2000 | PT1/4 | 1.1 |
| BMB-3FS | 2.5 | 3.75 | 4.5 | 2000 | PT1/4 | 1.2 |
Common to every model
| Maximum Pressure | 5.0 kgf/cm² (0.5 MPa) |
|---|
