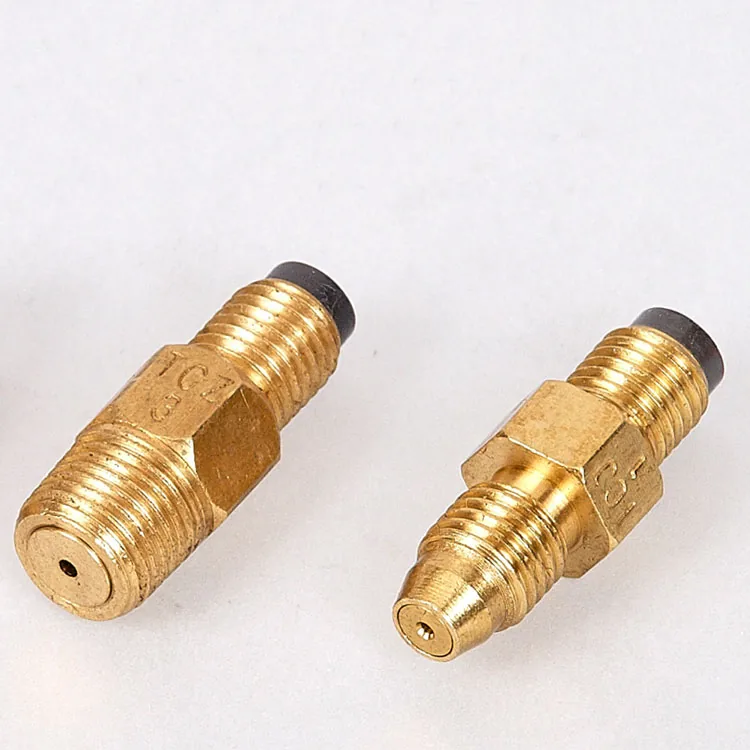

TCJ and TCZ Resist Type Distributor
The TCJ/TCZ resist-type proportioning distributor has a built-in filter screen and single-side valve, controlling flow through a damping orifice.
Used in escalator lubrication systems.
Manual for TCJ and TCZ Resist Type DistributorPDF · 1 page · 106 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The TCJ/TCZ resist-type proportioning distributor has a built-in filter screen and single-side valve, controlling flow through a damping orifice. It delivers oil in proportion to each lubrication point, and suits resist-type lubrication systems.

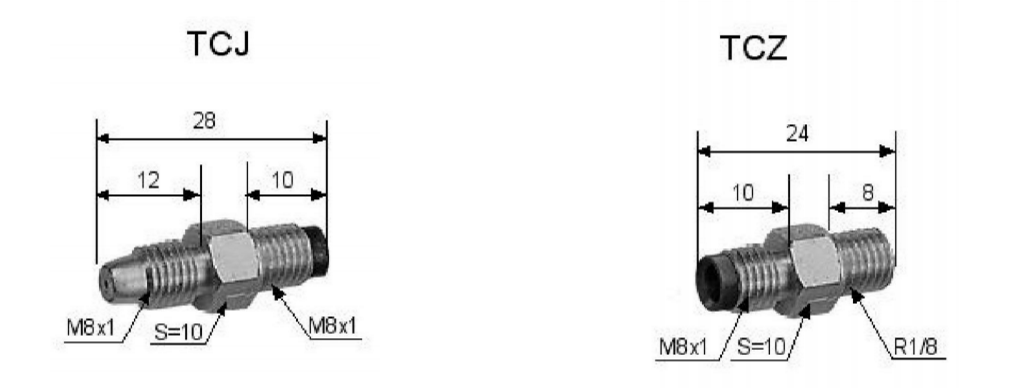

Dimension
Specifications
| Type | Standard size | Flow rate | Connector diameter |
|---|---|---|---|
| TCJ | 1 | 1 | IN M8 × 1, OUT M8 × 1 |
| TCJ | 2 | 2 | IN M8 × 1, OUT M8 × 1 |
| TCJ | 3 | 4 | IN M8 × 1, OUT M8 × 1 |
| TCZ | 4 | 8 | IN M8 × 1, OUT R1/8 |
| TCZ | 5 | 16 | IN M8 × 1, OUT R1/8 |
Common to every model
| Working Pressure | 1.5 to 20 kgf/cm² |
|---|---|
| Oil Viscosity | 20 to 50 cSt |
Not sure which grade suits your machine? See choosing the right lubricant.
See also
Related products
-
RH3 Type Volumetric Distributor
The RH3 volumetric distributor is developed and refined from the earlier RH2 generation, delivering a dosed amount of oil to each lubrication point according to the measured cycle.
Distributors -
34 Type Volumetric Distributor
The 34 type pressurized volumetric distributor injects a metered dose of oil as line pressure rises, then refills as pressure drops.
Distributors -

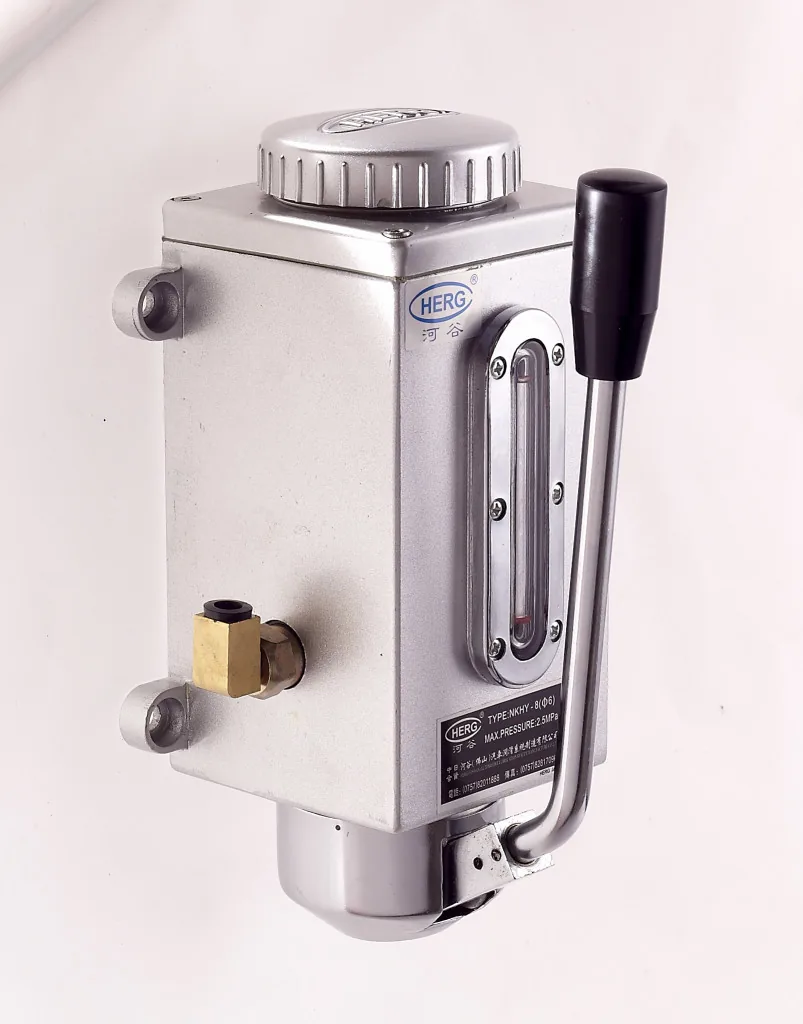

NKHY Manual Oil Pump
