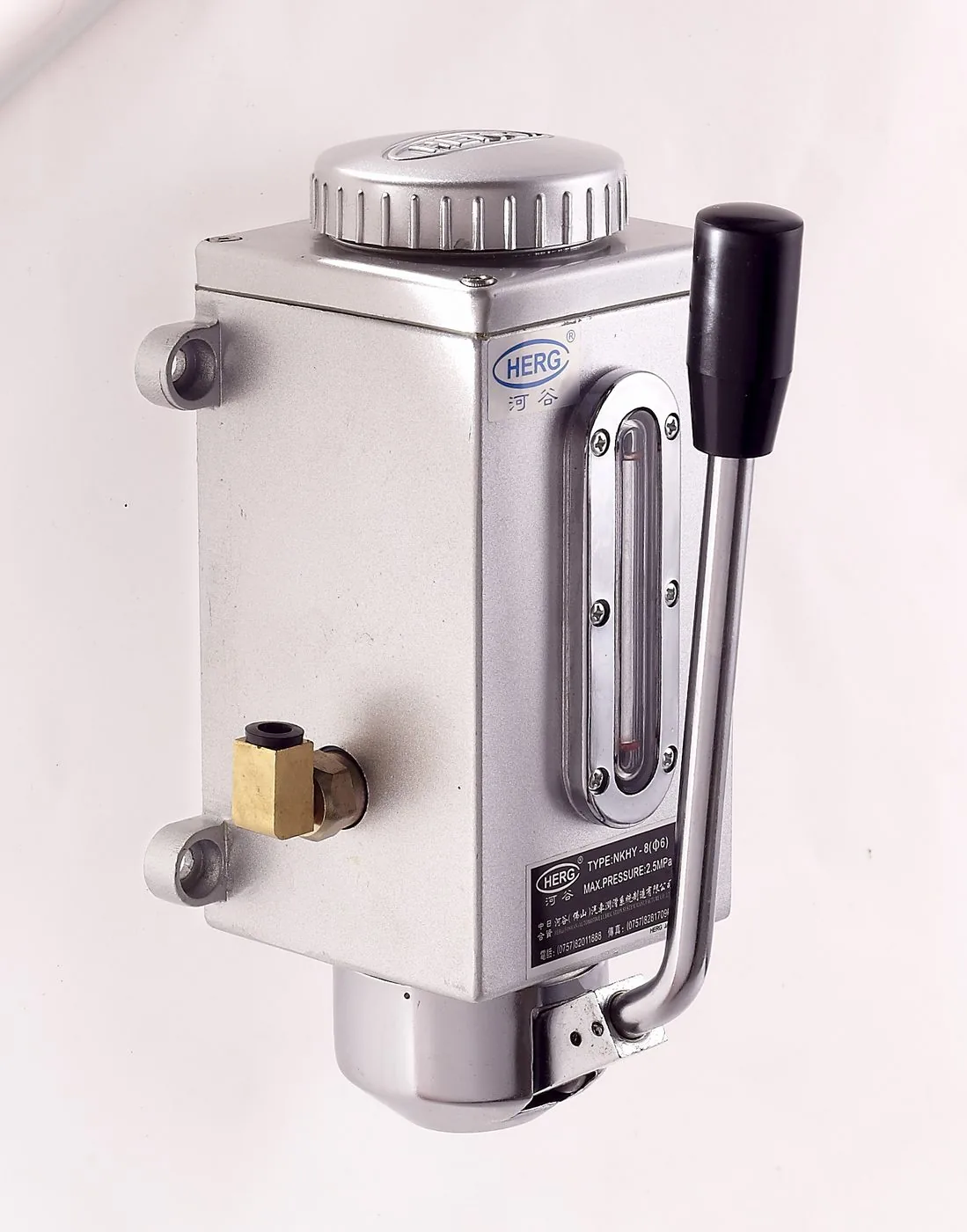

NKHY Manual Oil Pump
The NKHY pull-type oil pump suits single-line resist-type lubrication systems, metering and delivering oil in proportion to each lube point.
Used in escalator lubrication systems.
Manual for NKHY Manual Oil PumpPDF · 2 pages · 124 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The NKHY pull-type oil pump suits single-line resist-type lubrication systems, metering and delivering oil in proportion to each lube point via resist-type distributors. Fitted with a pressure take-off mechanism, it also suits positive-displacement volumetric lubrication systems, delivering a dosed amount of oil to each lube point via volumetric distributors.
The pump is widely used in machine tools, woodworking machines, textile machines, plastic machines and packing machines.
Specifications

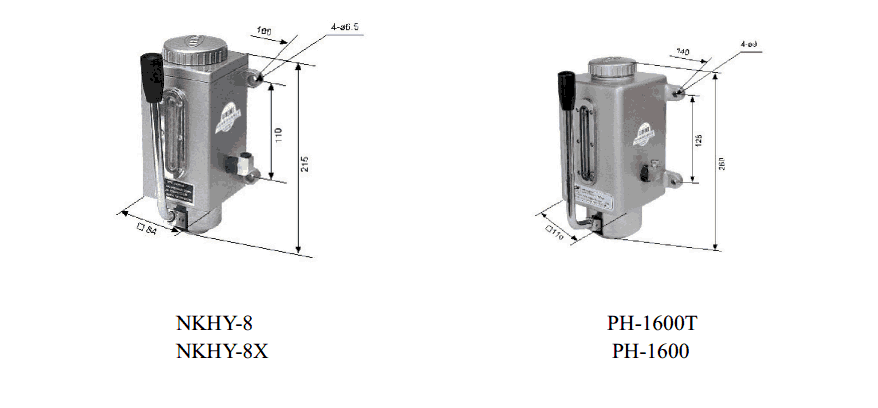

| Model | Discharge capacity | Maximum discharge pressure | Reservoir | System type |
|---|---|---|---|---|

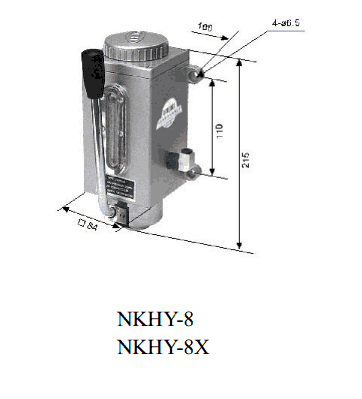

| NKHY-8 | 8 cc/stroke | 15 kgf/cm² (1.5 MPa) | 0.6 L | Resist type |
| NKHY-8X | 8 cc/stroke | 15 kgf/cm² (1.5 MPa) | 0.6 L | Volume type |
| PH-1600T | 16 cc/stroke | 25 kgf/cm² (2.5 MPa) | 1.6 L | Resist type |
| PH-1600 | 16 cc/stroke | 25 kgf/cm² (2.5 MPa) | 1.6 L | Volume type |
Common to every model
| Outlet Bore | M10 × 1 (⌀ 6) |
|---|---|
| Pump Outlets | 1 left + 1 right |
Not sure which grade suits your machine? See choosing the right lubricant.
