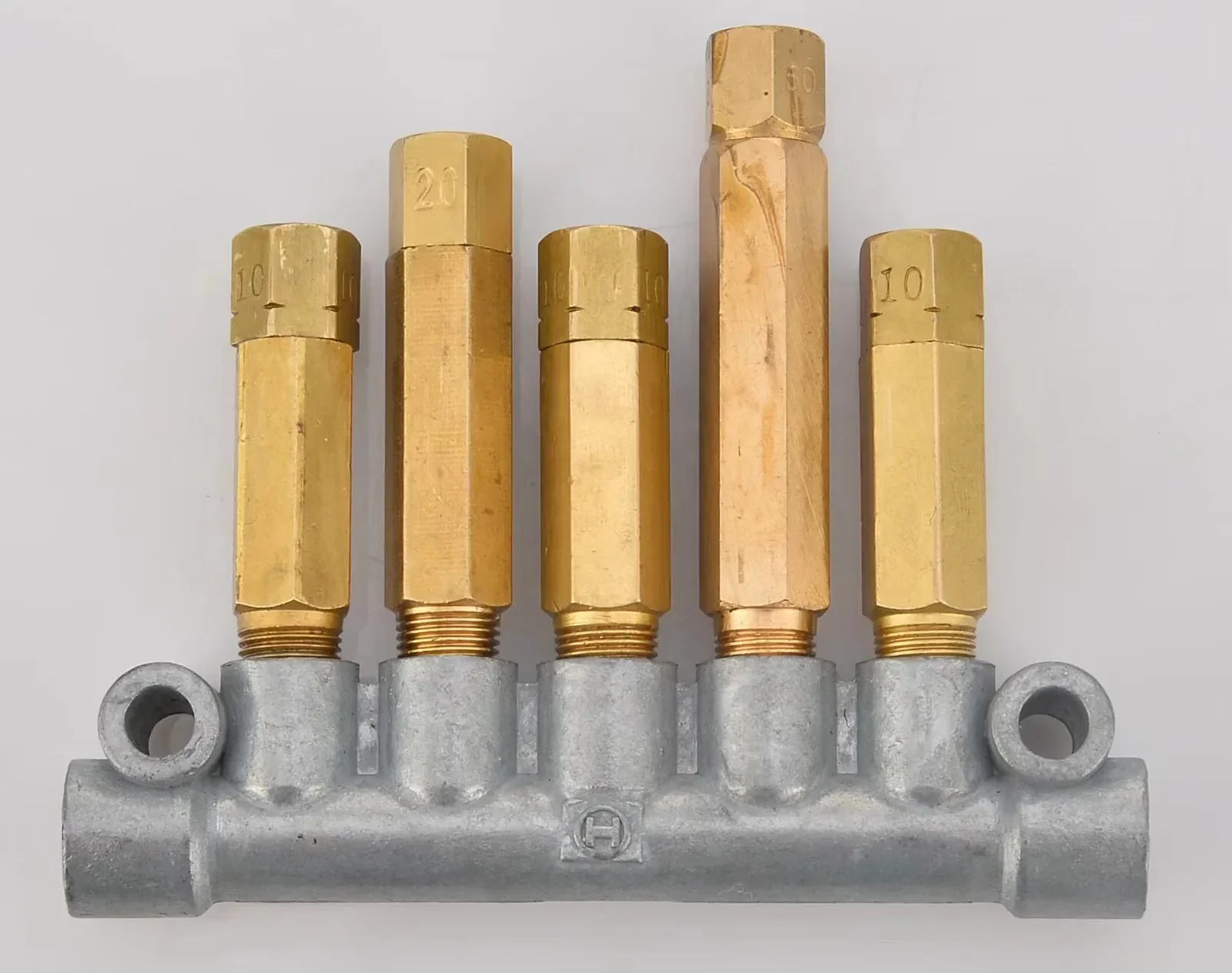

DK Type Single-Line Metering Distributor
Single-line metering distributor delivering a fixed dose of oil or grease per outlet each cycle, in six sizes from DK-05 to DK-50.
Manual for DK Type Single-Line Metering DistributorPDF · 1 page · 56 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The DK type distributor is a single-line metering block: each outlet discharges a fixed volume of lubricant per cycle, set by the model rather than by an adjustment on the block. Outlets are ø4 pipe, used with PA and PB tube fittings, and the distributor can be combined freely with a joint connector to build up a manifold.
Discharge volume runs from 0.05 mL per cycle on the DK-05 up to 0.5 mL per cycle on the DK-50, and each size is offered in an oil variant and a grease variant (suffixed G, for example DK-30G). Choose the model according to the oil capacity each lubrication point needs.
It is used on machine tools and other equipment running a single-line lubrication system, where each point takes a different, fixed dose from a common feed line.
Specifications
| Model | Length | Discharge Volume |
|---|---|---|
| DK-05 | 46.5 mm | 0.05 mL/cycle |
| DK-10 | 46.5 mm | 0.1 mL/cycle |
| DK-20 | 53.5 mm | 0.2 mL/cycle |
| DK-30 | 53.5 mm | 0.3 mL/cycle |
| DK-40 | 65.5 mm | 0.4 mL/cycle |
| DK-50 | 65.5 mm | 0.5 mL/cycle |
Common to every model
| Action Guarantee Pressure | Oil: 12–15 kgf/cm² (DK-05 to DK-30; not stated for DK-40/DK-50) |
|---|---|
| Recommended Viscosity | Grease 000# or 00# |
| Outlet | ⌀4 pipe, with PA/PB tube fittings |
Not sure which grade suits your machine? See choosing the right lubricant.
