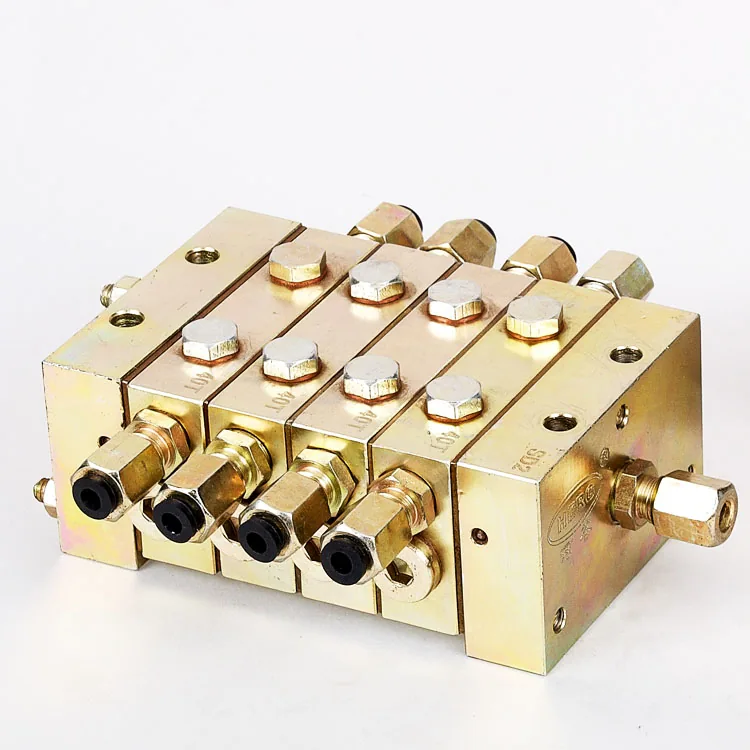

SD2 Type Progressive Grease Distributor
The SD block-type progressive distributor is compact and modular, rated for high pressure and a wide operating-temperature range.
Manual for SD2 Type Progressive Grease DistributorPDF · 13 pages · 621 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The SD block-type progressive distributor is compact and modular, rated for high pressure and a wide operating-temperature range. It pairs with a motor-driven or pneumatic pump to form a single-line progressive lubrication system.
It suits large machinery and equipment, and works well as the master distributor in single-line lubrication systems.
Specifications
| Maximum Working Pressure | 25 MPa |
|---|---|
| Minimum Starting Pressure | 1.4 MPa |
| Discharge Volume | 0.16 to 0.56 mL/cycle per double outlet; 0.32 to 1.12 mL/cycle single outlet |
| Lube Points | 1 to 20 per combined distributor |
| Block Assembly | 3 to 10 blocks |
| Maximum Cycling Rate | 200 cyc/min; 60 cyc/min on blocks with an indicator pin |
| Outlet Thread | Rc 1/8 |
| Lubricant | Oil of ≥ 68 mm²/s at 40 °C, or grease of penetration ≥ 265 at 25 °C |
| Working Temperature | −20 °C to +80 °C |
| Recommended Tube | ⌀ 6 mm, 1.5 to 4.5 m |
Not sure which grade suits your machine? See choosing the right lubricant.
See also
Related products
-
GM Type Grease Lubrication Pump
The GM type motor-driven grease pump serves medium and small machinery, delivering grease at a rated output pressure of 35 kgf/cm² through progressive, volumetric or resist-type distributors.
GMLubrication Pumps -

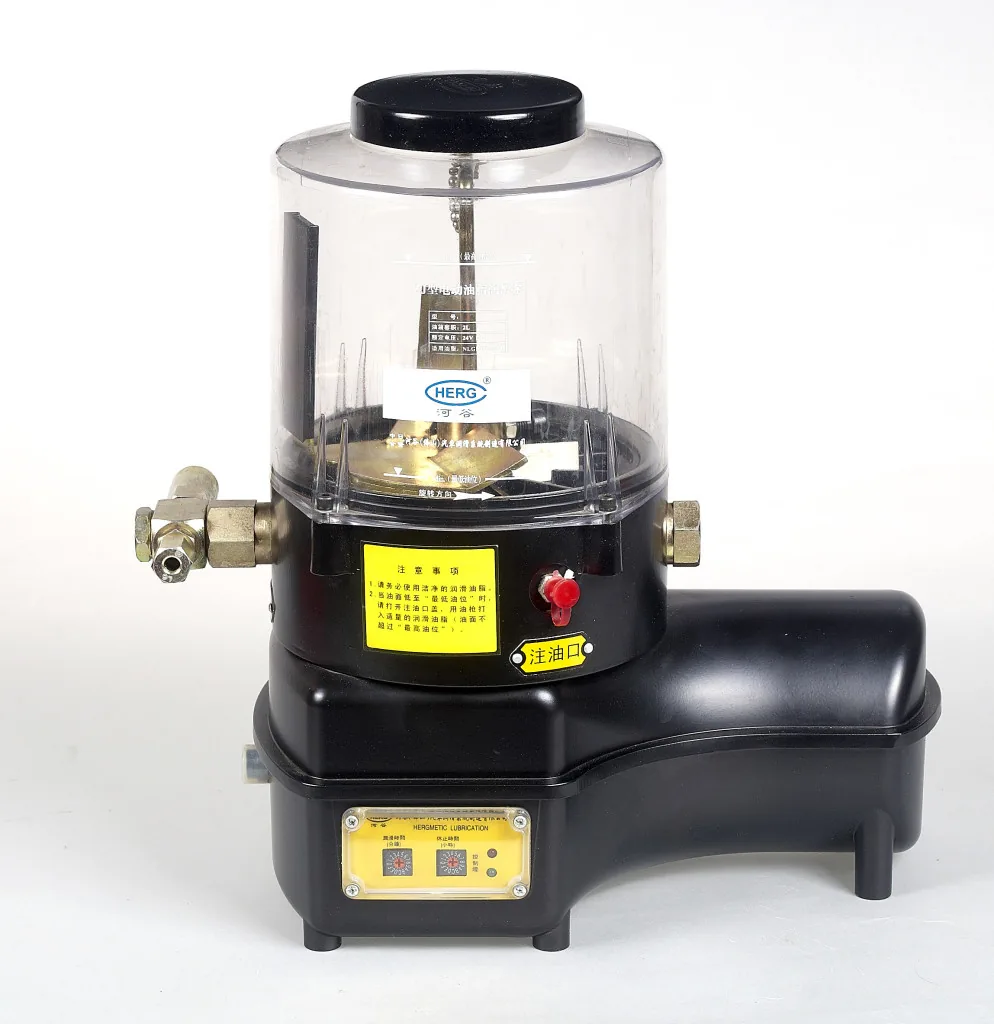

ZD Type Medium Pressure Grease Pump
