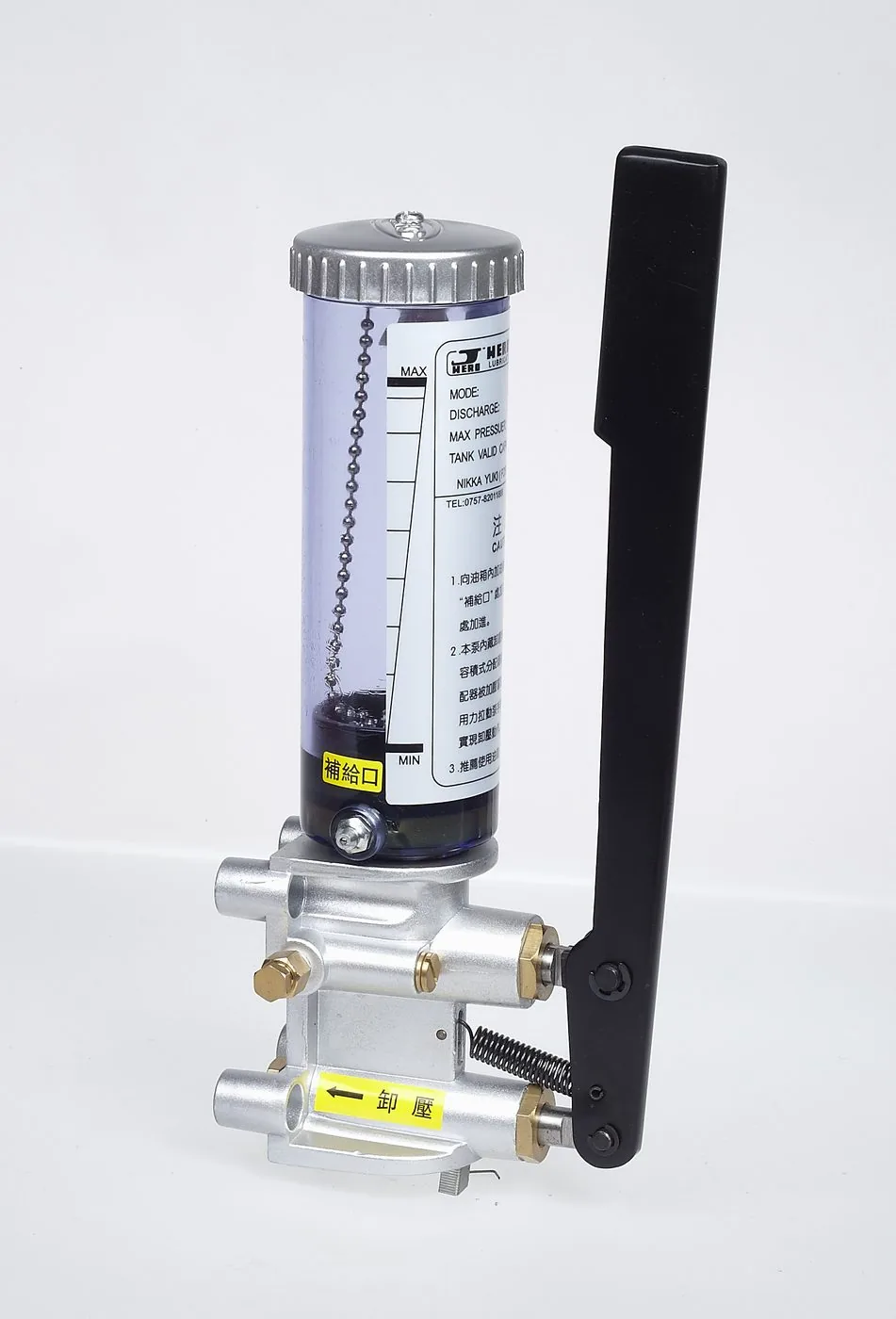

NKGH Manual Grease Pump
The NKGH manual grease pump feeds grease to a resist-type or progressive distributor through the reciprocating action of its handle, delivering grease to each lubrication point.
Manual for NKGH Manual Grease PumpPDF · 2 pages · 128 KBEnquire about this product
Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.
Send an enquiryDescription
The NKGH manual grease pump feeds grease to a resist-type or progressive distributor through the reciprocating action of its handle, delivering grease to each lubrication point. Paired with a resist-type proportioning distributor it forms a resist-type grease lubrication system, delivering grease to each point in proportion; paired with a U-type or SD-type progressive distributor it forms a progressive lubrication system, delivering a metered dose to each point instead.
The pump has two outlets, one fitted with a blank plug. Users can remove the plug to use the left outlet, the right outlet, or both, depending on the installation — except in a progressive lubrication system, which uses only one outlet.
The pump is widely used in medium and small machinery, including engineering machinery, weaving machinery, printing machinery and machine tools.
Specifications
| Model | Discharge capacity | Reservoir | Pump outlets |
|---|---|---|---|
| NKGH-1004 | 1.2 cc/stroke | 0.5 L | Left and right |
| NKGH-1008 | 1.2 cc/stroke | 1 L | Left and right |
| NKGH-1804 | 1.8 cc/stroke | 0.5 L | Left only |
Common to every model
| Working Pressure | 10 MPa |
|---|---|
| Outlet Thread | M10 × 1 |
| Grease | NLGI 000# to 1# |
Not sure which grade suits your machine? See choosing the right lubricant.
