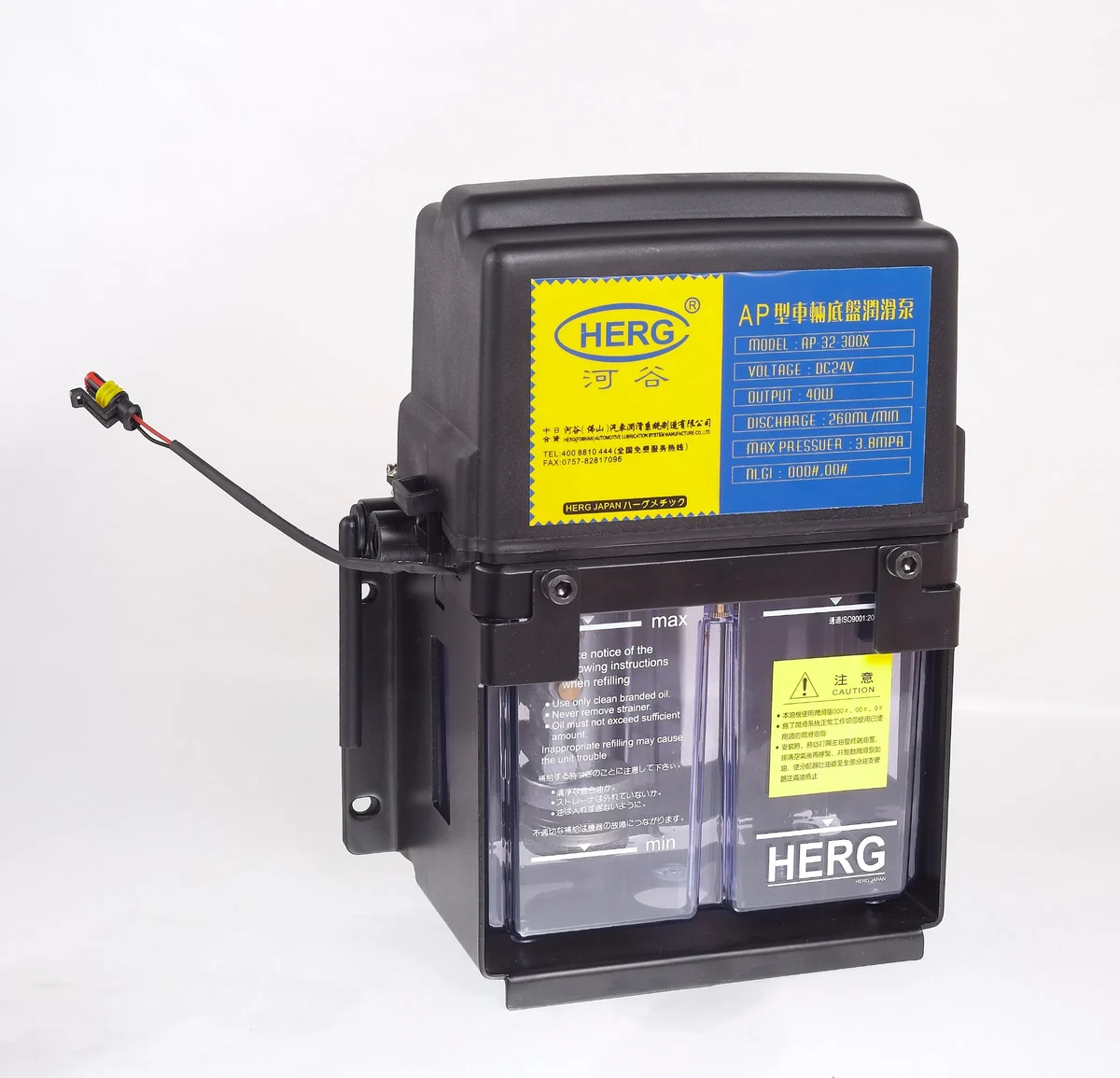

AP Type Automotive Chassis Lubrication Pump

Name: AP Type Automotive Chassis Lubrication Pump
Brand: Herg
SKU: AP

The AP type is a low-voltage grease pump for centralised chassis lubrication on vehicles, running directly from a 12V or 24V DC vehicle supply. It has a 3 L polycarbonate reservoir, a built-in pressure take-off mechanism and a level switch, and is rated IP55 for use under a chassis.

Used in

Vehicle chassis

Manual for AP Type Automotive Chassis Lubrication PumpPDF · 2 pages · 72 KB

Enquire about this product

Send us the model, quantity and application and we'll reply with pricing, lead time and your nearest distributor.

Send an enquiry

Description

The polycarbonate reservoir lets the level be read without opening the unit, and the IP55 housing suits mounting on a chassis rail where it is exposed to road spray.

The model number records the build: AP-32-300X denotes a grease pump with a discharge capacity in the 200 to 300 cc/min band, DC 24V supply, a 3 L reservoir, and a built-in pressure take-off mechanism and level switch.

The pump pairs with AD, RH-3 or 35 type volumetric distributors, or with U-shape and SD progressive distributors, to feed each lubrication point on the chassis.

Specifications

AP pump models
Model	Discharge capacity	Working pressure	Reservoir	Voltage
AP-31-300X	260 mL/min	3.5 to 3.8 MPa	3.0 L	DC 12V
AP-32-300X	260 mL/min	3.5 to 3.8 MPa	3.0 L	DC 24V

Common to every model

Specifications for AP Type Automotive Chassis Lubrication Pump
Discharge Capacity	260 mL/min
Working Pressure	3.5 to 3.8 MPa
Reservoir	3 L (3 kg), polycarbonate
Voltage	12V DC (AP-31-300X), 24V DC (AP-32-300X)
Motor Power	40 W
Lubricant	NLGI 000# to 0# grease
Outlet	M16 × 1.5 (ø10 pipe)
Protection Rating	IP55
