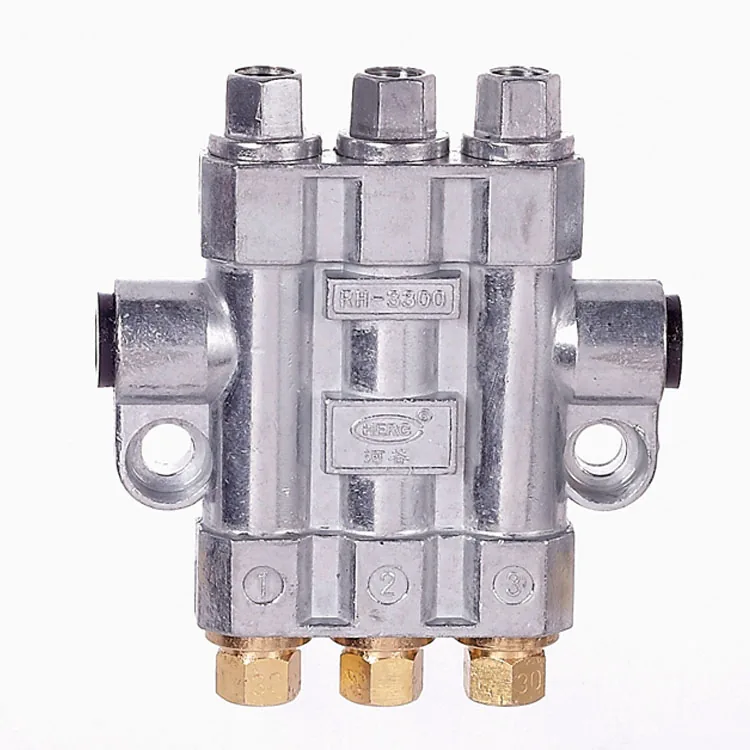

RH3 type inspecting volume type distributor is developed and optimized over the first generation RH2 product and is best love by users. It can be deliveried dosing oil to each lubrication points according to the measured volume type distributor. It can be deliveried dosing oil to each lubrication points according to the measured volume type distributor. There are two outlets, three outlets, four outlets, and five outlets for option.It also can be connected to six outlets, seven outlets and so on.
It is widely used in printing machines, packing machines, machine tool and other machine equipment and etc.

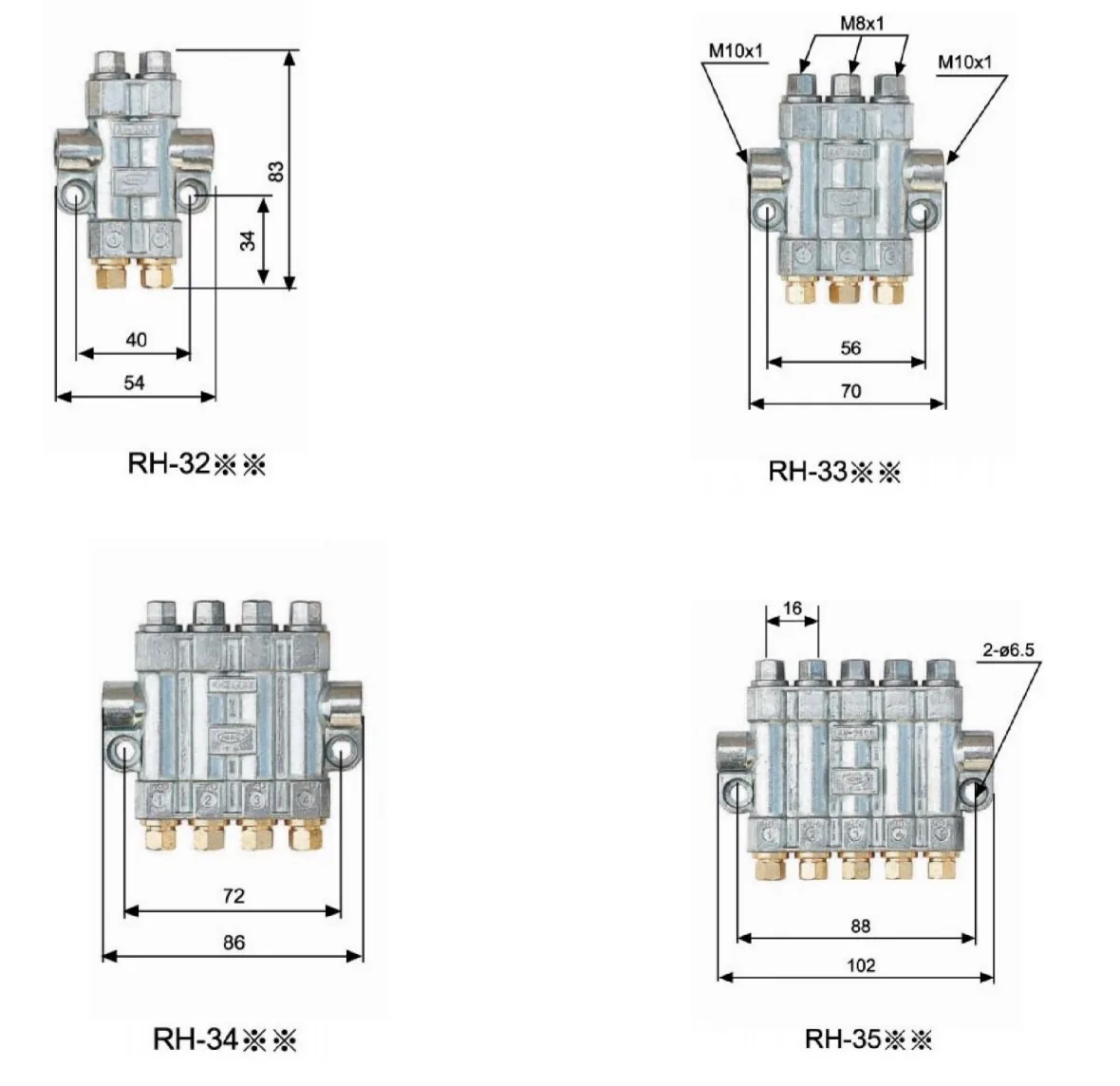

Dimension

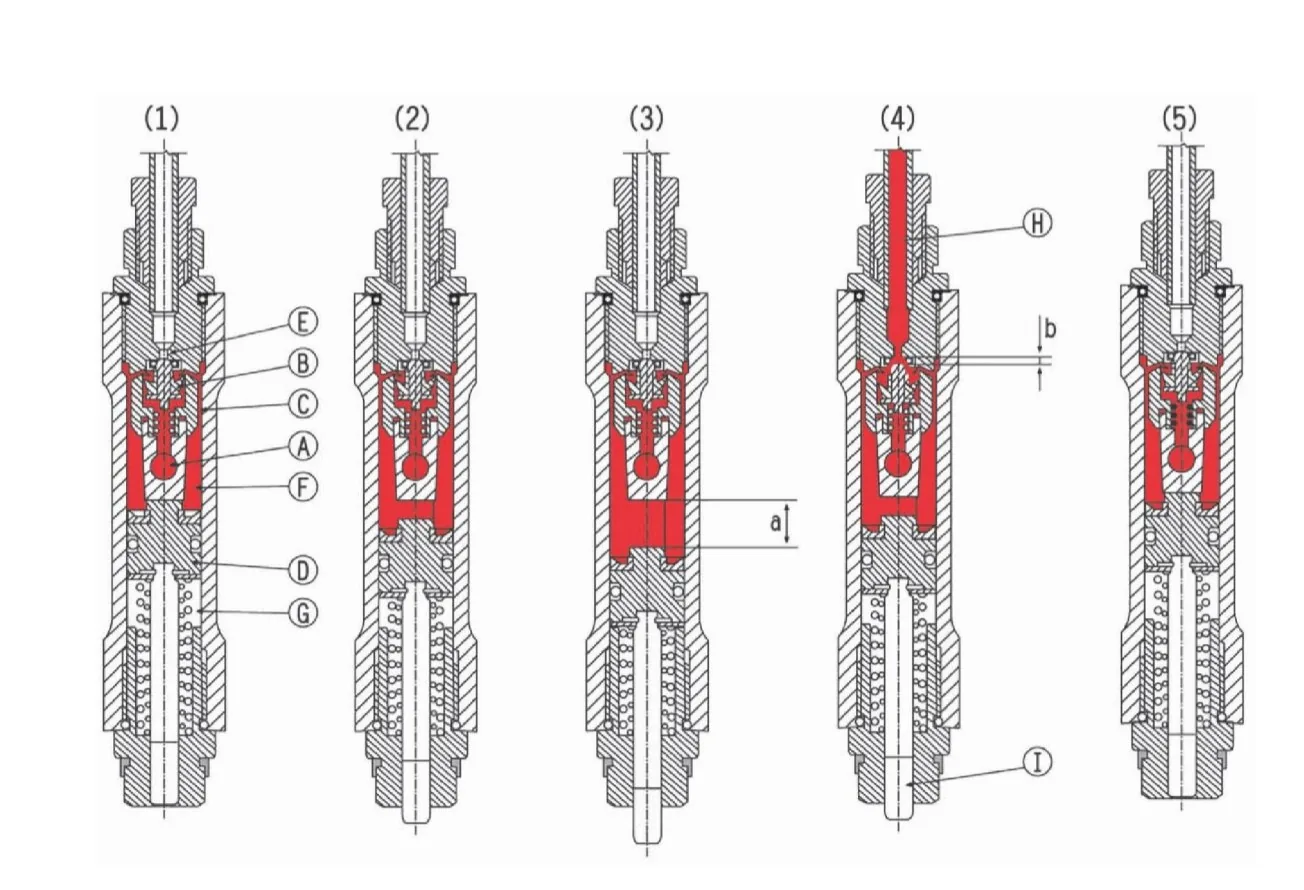

Operating Principle
(2) At measurement of main tube pressure increase.
(3) Measurement completed
(4) Oil being discharged
(5) Oil discharge completed
a、Measuring piston travel
b、Travel of umbrella-shaped double-side valve
As shown in above diagram, oil delivered from lubrication pump is injected via main tube and push open the umbrella-shaped double-sided valve B in flow in and pressed into piston chamber F via path C. Driven by pressed oil the measurement piston move downward and spring G is compressed and accumulate pressure. Thus measurement and oil accumulation is done.
When oil pressure inside main tube A is relieved (take off), the umbrella-shaped valve moves downward due to pressure difference and open outlet E. Hence the measured and accumulated oil inside piston chamber enters oil tube H via outlet E and are fed to lubrication points. Signal pin I extends when measuring and accumulating oil and retracts when feeding oil to lubrication points, and thus operation conditions of distribution can be confirmed.
